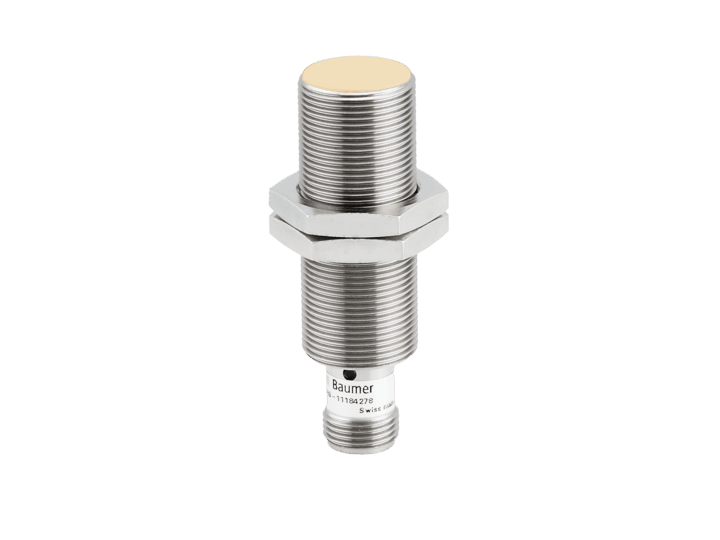

IWRR 18I97T4/S14 Inductive Distance Sensor

Product Attributes

• Shape:Cylindrical Threaded
• Measuring Distance:0 to 7 mm
• Output Signal:4 to 20 mA
• Resolution:<0.005 mm (Static)
  <0.01 mm (Dynamic)
• Tightening Torque:55 Nm (Front: 38 Nm)
• Response Time/Release Time:<2 ms
• Supply Voltage:15 to 30 V dc
• Connection Type:M12 Connector
• Output Circuit:Current Output
• Repeat Accuracy:0.015 mm
• Mounting Type:Quasi-Flush
• Load Resistance:<1000 Ω
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Length:60 mm
• [$]Width:18 mm
• [$]Housing Material:Stainless Steel 1.4404 (V4A)
• [$]IP Rating:IP 68/69K
  proTect+
• [$]Operating Temperature:-40 to +70 °C
• [$]Standards Met:CE Certified
  cULus Listed
