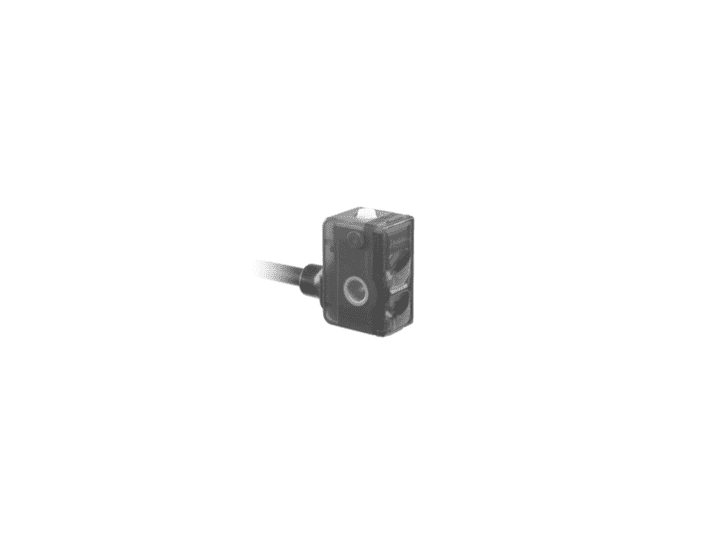

LFG-1020-050, Fiber Optic Sensor 50 mm 25 mm Bending Radius
Product Attributes
Shape: Rectangular Sensing Distance: 10 to 60 mm Light Source: Pulsed Red LED Sensing Range: 2 to 60 mm (@ Tw Maximum) 5 to 10 mm (@ Tw Minimum) Wave Length: 660 nm Alignment/Soiled Lens Indicator: Flashing Light Indicator Sensing Distance Adjustment Type: Teach-In Response Time/Release Time: <0.5 ms Supply Voltage: 10 to 30 V dc Output Current: <100 mA Output Function: Light/Dark Operate Output Circuit: PNP Light Indicator: Green LED Output Indicator: Yellow LED Short Circuit Protection (Yes/No): Yes Reverse Polarity Protection (Yes/No): Yes Front Optics: PMMA Connection Type: M8 4-Pin Flylead Connector [$]Dimension: 16.2 x 8 x 10.8 mm [$]Housing Material: Plastic (PMMA, MABS, PA) [$]IP Rating: IP 65 [$]Operating Temperature: -20 to +50 °C
