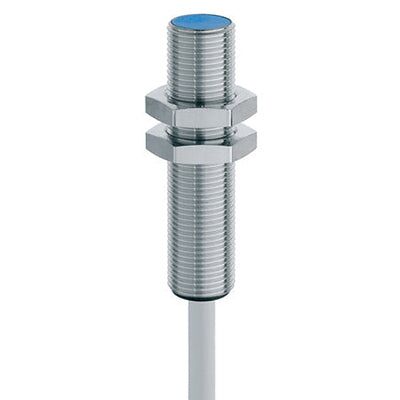

2-WIRE INDUCTIVE SENSORS

Product Attributes

• Sensing Range:4 mm
• Polarity:2 Wire
• Connection Type:2 m 2 Wire
• Thread Size:M12 x 1
• Connector Size:12 mm
• Supply Voltage:10 to 65 V dc
• Current Rating:≤100 mA
• No-Load Supply Current:≤0.6 mA
• Minimum Output Current:≥ 2 mA
• Maximum Switching Frequency:≤2000 Hz
• Oscillator Frequency:350 kHz
• Temperature Drift:≤10%
• Time Delay:≤70 μs
• Repeat Accuracy:0.2 mm
• Sensor Face Type:PBTP
• Housing Material:Chrome Plated Brass
• Cable Length:300 m
• Sensor Height:50 mm
• Operating Temperature Range:-25 to +70 °C
• Mounting Type:Embeddable
• IP Rating:IP67
• Weight:95 g
• Voltage Drop:≤5 V @ 100 mA
