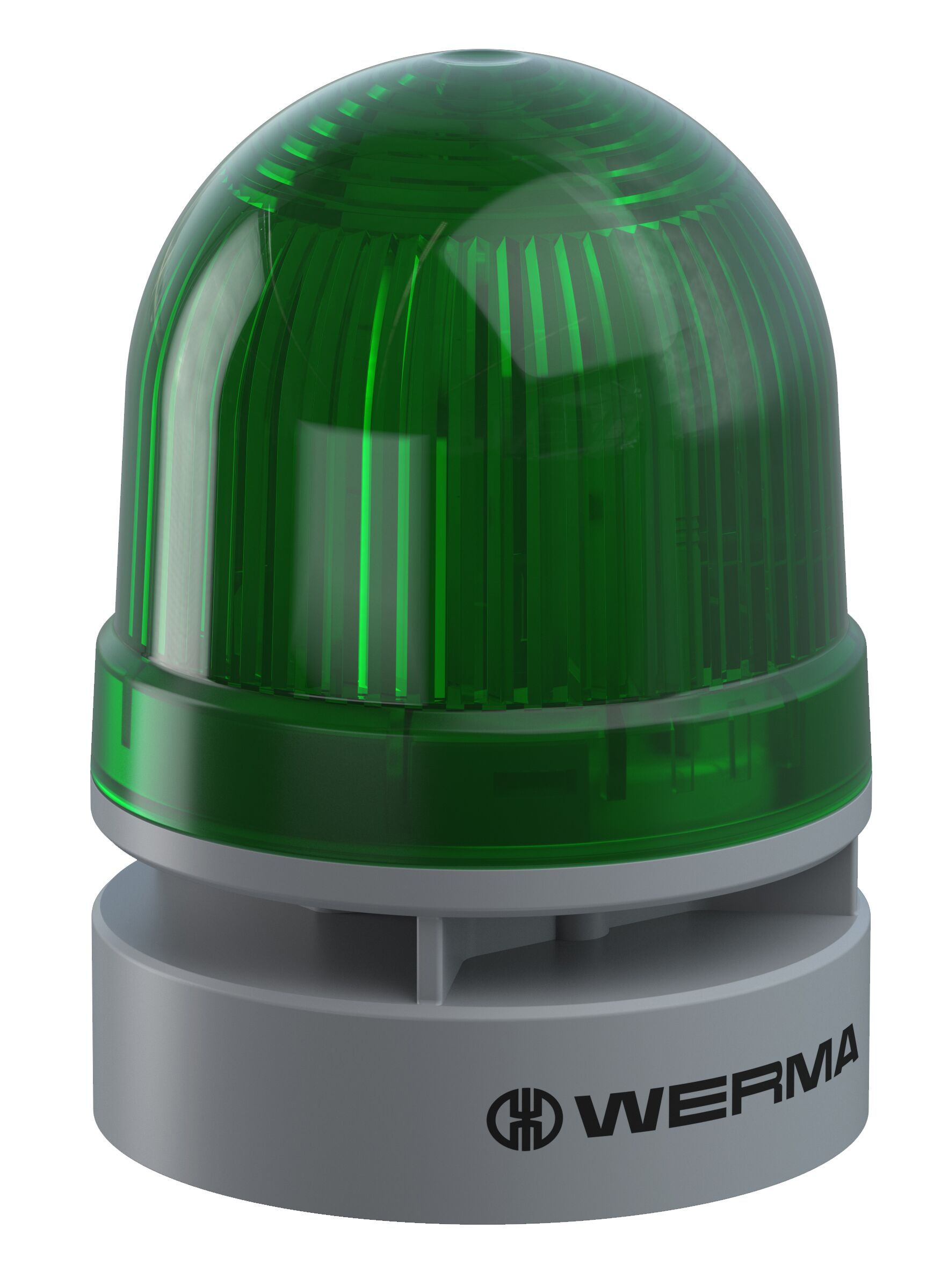

Beacon Light Combination

Product Attributes

• Brand:Werma
• Product Type:Beacon Light Combination
• Height:85 mm
• Diameter:62 mm
• Material:ABS
  PC
• Dome Color:Green
• Housing Color:Gray
• Connection Type:Push-In Terminal
• Cross-Sectional Area:0.25 to 1.5 mm²
• Operating Temperature Range:-30 to +60 °C
• Voltage Rating:115 to 230 V ac
• Frequency Rating:50 Hz@230 V
  60 Hz@115 V
  1 Hz (Blink)
• Audio Frequency Rating:4000 Hz
• MTTF:536 Years
• Pulse and Pause Duration:416ON
  502OFF ms
• Over Voltage Category:II
• Current Rating:65 mA
• Inrush Current Rating:2000 mA
• Volume:95 dBA@1 m
• Light Source:LED
• Light Color:Green
• Optical Signal Image:Blink
  Permanent
  TwinLight
• Number of Tones:2
• Optical Life Hours:50000 hrs
• Tone Type:Continuous Tone
  Pulse Tone
• Acoustic Life Hours:5000 hrs
• IP Rating:IP66
• Protection Class:2
• Pollution Degree:3
• UL Class Rating:12
• Tolerance Rating:±10 %
• Standards Met:CCC
  CE
  cULus
  EAC
  UKCA
  WEEE
• Weight:78 g
• Isolation Voltage:250 V
