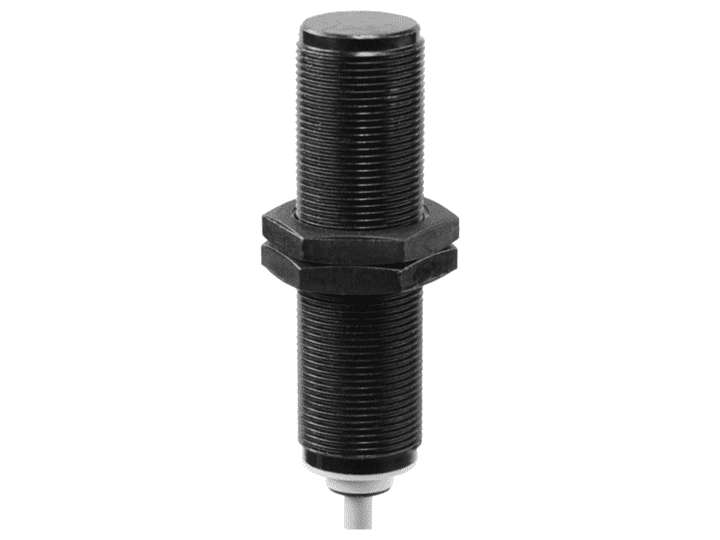

CFAK 18P1100 Capacitive Proximity Sensor

Product Attributes

• Shape:Cylindrical Threaded
• Nominal Sensing Distance:5 mm
• Fill Level Detection Through Container (Yes/No):Yes
• Sensitivity Adjustment (Yes/No):No
• Output Indicator:Yellow LED
• Mounting Type:Non-Flush
• Measurement Type:Contactless
• Supply Voltage:10 to 30 V dc
• Output Circuit:PNP Make Function (NO)
• Output Current:<200 mA
• Current Consumption:20 mA
• Housing Material:PBT
• Switching Frequency:50 Hz
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Object Detection/Bulk Goods (Yes/No):Yes
• Direct Contact Liquids (Yes/No):Yes
• Connection Type:2 m Cable
• Dimension:18 Dia. x 63.5 L mm
• IP Rating:IP 67/65 (Sensing Face/Sensor)
• Operating Temperature:-25 to +75 °C
• [$]Standards Met:CE Certified
  cULus Listed
