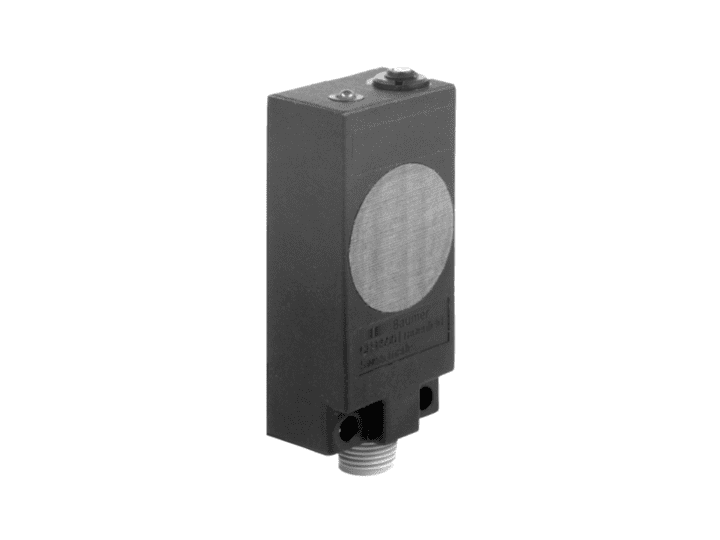

CFDK 30P3600/S14 Capacitive Proximity Sensor

Product Attributes

• Shape:Rectangular
• Nominal Sensing Distance:15 mm
• Adjustable Nominal Sensing Distance:4 to 15 mm
• Fill Level Detection Through Container (Yes/No):Yes
• Sensitivity Adjustment Type:15 Turn Potentiometer
• Output Indicator:Yellow LED
• Mounting Type:Flush
• Measurement Type:Contactless
• Supply Voltage:10 to 30 V dc
• Output Circuit:PNP Break Function (NC)
• Output Current:<200 mA
• Current Consumption:20 mA
• Housing Material:PBT
• Switching Frequency:50 Hz
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Object Detection/Bulk Goods (Yes/No):Yes
• Direct Contact Liquids (Yes/No):No
• Connection Type:M12 Connector
• Dimension:30 Dia. x 75 L mm
• IP Rating:IP 65
• Operating Temperature:-25 to +75 °C
• [$]Standards Met:CE Certified
  cULus Listed
