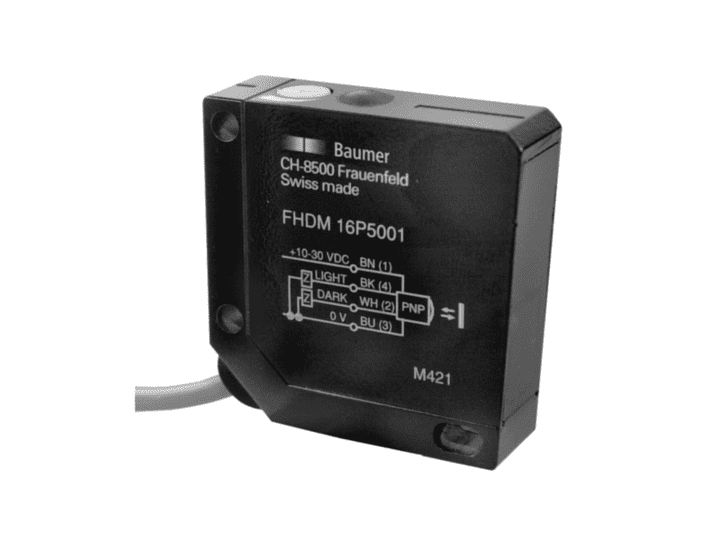

FHDM 16P5001 Diffuse Sensor

Product Attributes

• Shape:Rectangular
• Sensing Distance:20 to 450 mm
• Light Source:Pulsed Red LED
• Sensing Range:20 to 450 mm (@ Tw Maximum)
  5 to 20 mm (@ Tw Minimum)
• Wave Length:660 nm
• Sensing Distance Adjustment Type:5 Turn Mechanical
• Response Time/Release Time:<1 ms
• Supply Voltage:10 to 30 V dc
• Output Current:<200 mA
• Output Function:Light/Dark Operate
• Output Circuit:PNP
• Light Indicator:Yellow LED
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Front Optics:PMMA
• Connection Type:2 m 4-Pin Cable
• [$]Dimension:50 x 15.4 x 50 mm
• [$]Housing Material:Die-Cast Zinc
• [$]IP Rating:IP 67
• [$]Operating Temperature:-25 to +65 °C
