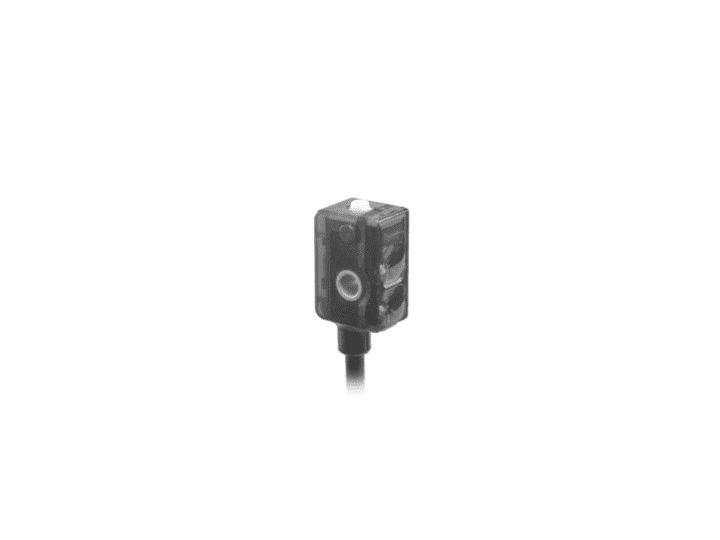

FNDK 07N6910/KS35A Light Barrier

Product Attributes

• Shape:Rectangular
• Background Position:17 to 45 mm
• Scanning Range:82 %
• Light Source:Pulsed Red LED
• Light Indicator:Green LED
• Output Indicator:Yellow LED
• Sensing Distance Adjustment Type:Teach-In
• Wave Length:660 nm
• Response Time/Release Time:<0.5 ms
• Supply Voltage:10 to 30 V dc
• Output Function:Light/Dark Operate
• Output Circuit:NPN
• Output Current:<100 mA
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Connection Type:M8 4-Pin Flylead Connector
• Housing Material:Plastic (PMMA, MABS, PA)
• Dimension:16.2 x 8 x 10.8 mm
• IP Rating:IP 65
• Operating Temperature:-20 to +50 °C
• [$]Standards Met:cULus Listed
