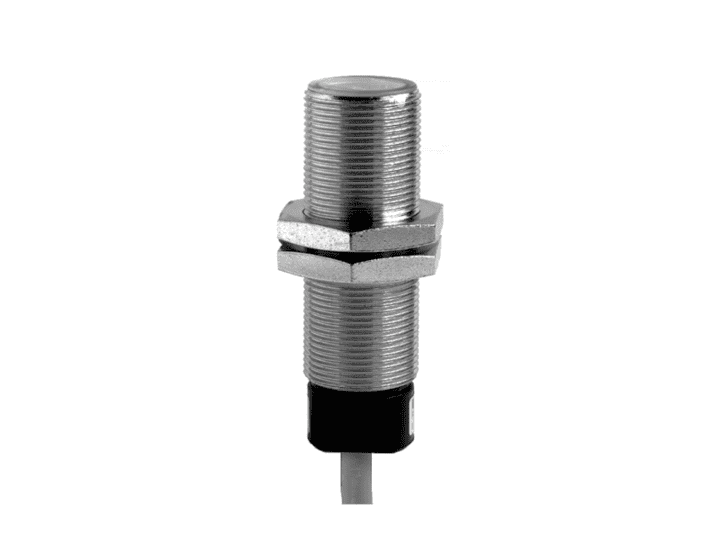

FPAM 18P3151 Retro-Reflective Sensor

Product Attributes

• Shape:Cylindrical Threaded
• Actual Range:3.2 m
• Nominal Range:4 m
• Light Source:Pulsed Red LED
• Polarization Filter (Yes/No):Yes
• Alignment/Soiled Lens Indicator:Flashing Light Indicator
• Light Indicator:Yellow LED
• Wave Length:660 nm
• Output Circuit:PNP
• Output Current:<200 mA
• Output Function:Dark Operate
• Response Time/Release Time:<1 ms
• Supply Voltage:10 to 30 V dc
• Reverse Polarity Protection (Yes/No):Yes
• Front Optics:PMMA
• Connection Type:2 m 3-Pin Cable
• Housing Material:Brass Nickel Plated/PC
• Dimension:18 Dia. x 57 L mm
• IP Rating:IP 67
• Operating Temperature:-25 to +55 °C
• Standards Met:CE Certified
  cULus Listed
