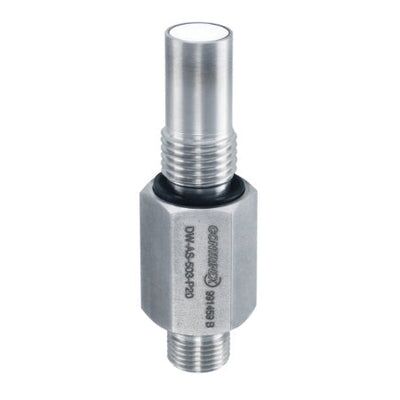

HIGH PRESSURE INDUCTIVE SENSORS

Product Attributes

• Sensing Range:3 mm
• Polarity:PNP
• Connection Type:M12 4-Pin
• Thread Size:M14 x 1.5
• Connector Size:14 mm
• Supply Voltage:10 to 30 V dc
• Current Rating:≤200 mA
• No-Load Supply Current:≤10 mA
• Operating Pressure:≤500 bar
• Peak Pressure:≤1000 bar
• Maximum Tightening Torque:70 Nm
• Maximum Switching Frequency:≤500 Hz
• Temperature Drift:≤10 % (-25 to +70°C)
  ≤15 % (+70 to +100°C)
• Repeat Accuracy:≤0.1 mm
• Sensor Face Type:Zr02
• Housing Material:Stainless Steel DIN 1.4435
• Cable Length:≤300 m
• Sensor Height:65 mm
• Operating Temperature Range:-25 to +100 °C
• Mounting Type:Embeddable
• IP Rating:IP68
• Weight:70 g
• Voltage Drop:≤2 V dc
