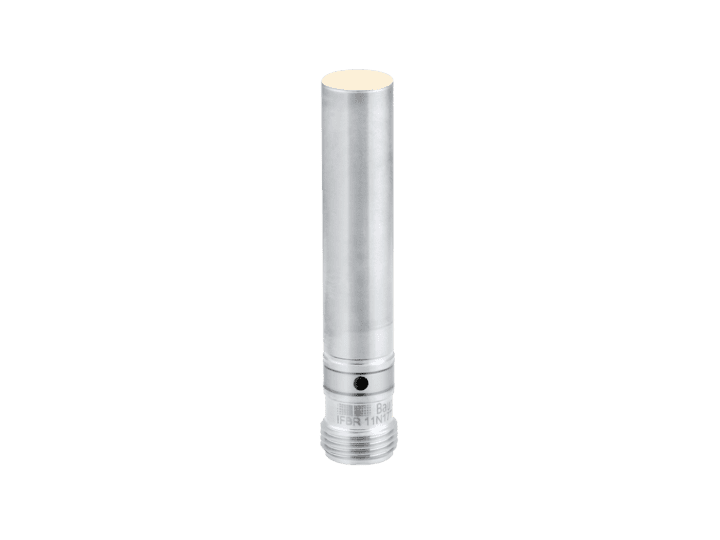

IFBR 11N17T1/S14L-9 Inductive Proximity Switch

Product Attributes

• Shape:Cylindrical Smooth
• Special Type:Hygienic Design
• Material:LCP (Sensing Face)
• Nominal Sensing Distance:4 mm
• Hysteresis:2 to 15 % of Sr
• Output Indicator:Red LED
• Switching Frequency:<1 kHz
• Supply Voltage:6 to 30 V dc
• Voltage Drop:<2 V dc
• Current Consumption:10 mA
• Output Circuit:NPN Make Function (NO)
• Output Current:<200 mA
• Output Current (at Cleaning Temperature):<100 mA
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Housing Material:Stainless Steel 1.4404 (V4A)
  LSR
• Width/Diameter:11 mm
• Length:60 mm
• Connection Type:M12 Connector
• Mounting Type:Flush
• Operating Temperature:-40 to +80 °C
• Protection Class:IP 68/69K
  proTect+
• Standards Met:CE Certified
  cULus Listed
  Ecolab
  Adapted from EHEDG
  REGULATION (EC) 1935/2004
  REGULATION (EC) 2023/2006
  REGULATION (EU) 1282/2011
  FDA 21 CFR § 175.300
  FDA 21 CFR § 177.2600
  FCN 742
