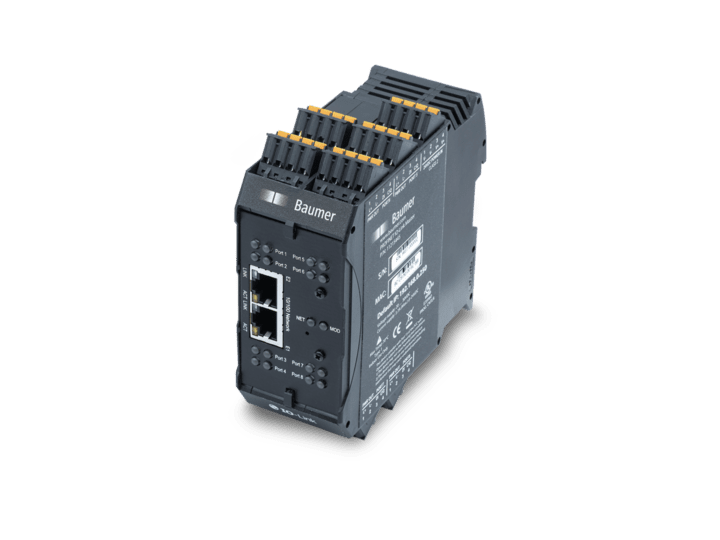

IO-Link Master, PROFINET, 8-Port, IP20 IO-Link Master

Product Attributes

• Communication Interface Type:Ethernet
  IO-Link
• Protocol Type:PROFINET
  Modbus TCP
  OPC UA
• Software Type:Integrated Webserver for Configuration
• Supply Voltage:18 to 30 V dc
• Current Consumption:155 mA
• Compatible Connector Type:Push-In connector
  Female RJ45
• Number of Ethernet Connection:2
• Number of IO-Link Connection:8
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Output Voltage:24 V dc
• Output Current:200 mA
• Output Function:NPN
  PNP
  Push-Pull
• Enclosure Material:Polyamide 66
• Dimension:212 x 65 x 30 mm
• IP Rating:IP 20
• Operating Temperature:-25 to +60 °C
• Standards Met:CE Certified
