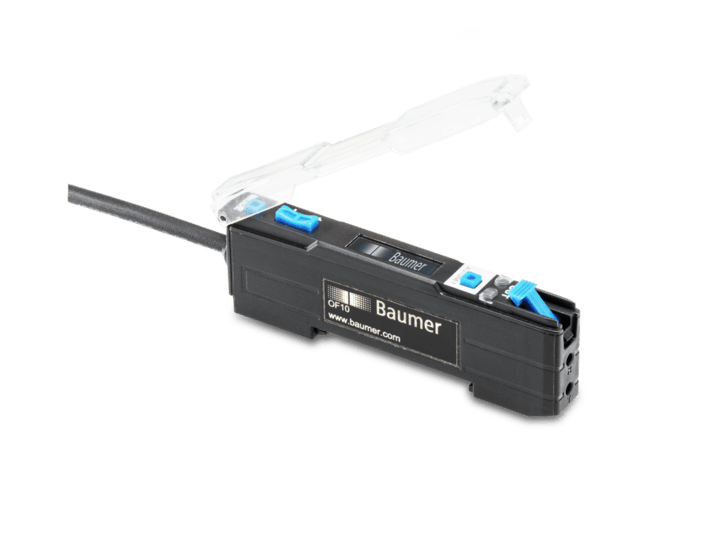

OF10.FR-PW1B.B2CV Fiber Optic Sensor

Product Attributes

• Shape:Rectangular
• Sensing Distance:210 mm
• Actual Range:840 mm
• Sensing Distance Adjustment Type:Teach-In: Button/External
• Light Source:Pulsed Red LED
• Light Indicator:OLED Display
• Wave Length:660 nm
• Response Time:0.05 ms (Ultra High Speed Mode)
  0.125 ms (High Speed Mode)
  0.25 ms (Standard Mode)
  1 ms (High Resolution Mode)
  4 ms (Long Range Mode)
  16 ms (Ultra Long Range Mode)
• Output Indicator:Red LED
• Output Function:Light/Dark Operate Switchable
• Output Circuit:PNP
• Output Current:<150 mA
• Supply Voltage:8 to 30 V dc
• Current Consumption:50 mA
• Housing Material:Polycarbonate
• Cable Length:2 m
• Suppression of Reciprocal Influence (Yes/No):Yes
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Connection Type:2 m Cable
• Dimension:27.8 x 10 x 82.3 mm
• IP Rating:IP 50
• Operating Temperature:5 to +55 °C
• [$]Standards Met:CE Certified
  cULus Listed
