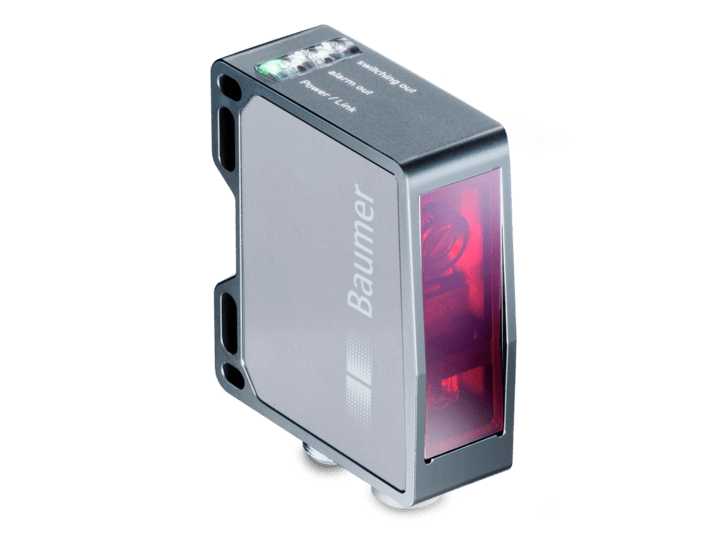

OM70-L1000.HV1000.EK Laser Distance Sensor

Product Attributes

• Shape:Rectangular
• Light Source:Pulsed Red Laser Diode
• Measuring Distance:100 to 1000 mm
• Power On Indication:Green LED
• Output Indicator:Yellow LED/Red LED
• Sensing Distance Adjustment Type:Webserver
  Ethernet TCP/IP
• Wave Length:660 nm
• Beam Type:Line
• Response Time/Release Time:0.8 ms (Delay)
• Supply Voltage:15 to 28 V dc
• Output Current:<100 mA
• Connection Type:M12 8-Pin & M12 4-Pin Connector
• Output Circuit:Analog and Digital
• Resolution:3 to 63 µm
• Interface Type:Ethernet TCP/IP
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Front Optics:Glass
• [$]Dimension:74 x 26 x 55 mm
• [$]Housing Material:Aluminum
• [$]IP Rating:IP 67
• [$]Operating Temperature:-10 to +50 °C
