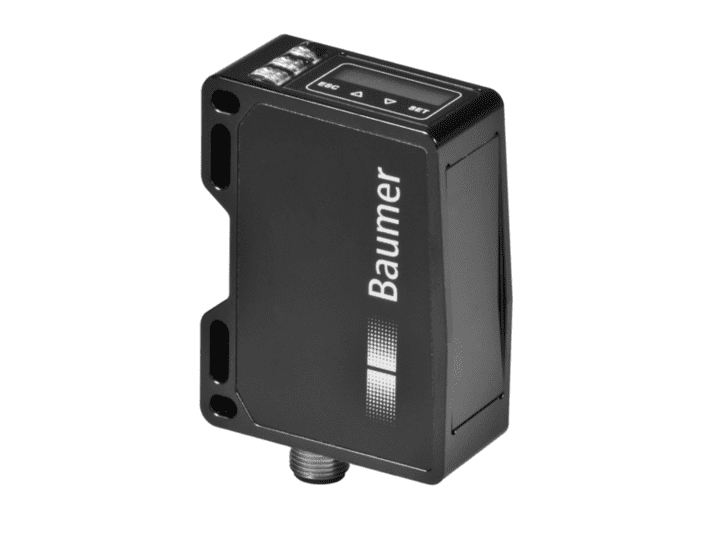

OM70-X0500.HI0660.VI Laser Distance Sensor

Product Attributes

• Shape:Rectangular
• Light Source:Pulsed Red Laser Diode
• Measuring Distance:100 to 500 mm
• Power On Indication:Green LED
• Sensing Distance Adjustment Type:Touch Display
  RS485
• Wave Length:660 nm
• Beam Type:Multi-Spot
• Response Time/Release Time:1.3 ms
• Supply Voltage:15 to 28 V dc
• Output Current:<100 mA
• Connection Type:M12 8-Pin Connector
• Output Circuit:Analog and RS 485
• Resolution:4 to 25 µm
• Interface Type:RS485
• Baud Rate:115200 (Adjustable)
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Front Optics:Glass
• [$]Dimension:74 x 26 x 55 mm
• [$]Housing Material:Aluminum
• [$]IP Rating:IP 67
• [$]Operating Temperature:-10 to +50 °C
