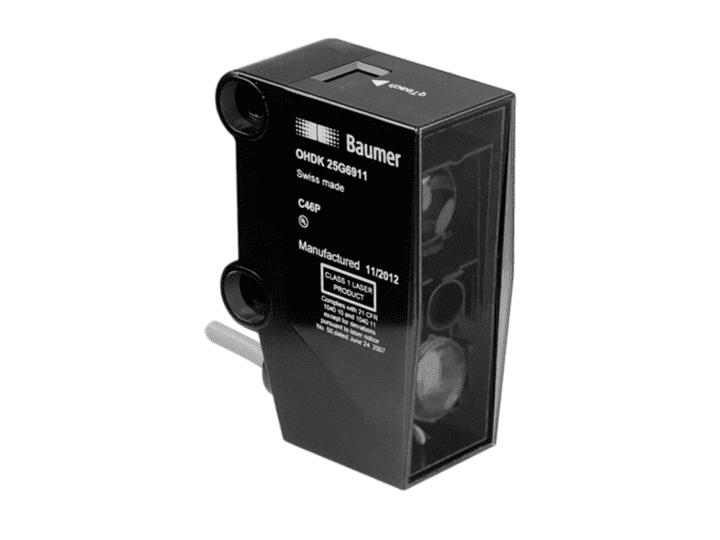

ONDK 25G6911 Light Barrier

Product Attributes

• Shape:Rectangular
• Background Position:100 to 1900 mm
• Scanning Range:97 to 83 %
• Light Source:Pulsed Red Laser Diode
• Alignment/Soiled Lens Indicator:Flashing Light Indicator
• Light Indicator:Yellow LED
• Sensing Distance Adjustment Type:Teach-In
• Wave Length:656 nm
• Response Time/Release Time:<10 ms
• Supply Voltage:10 to 30 V dc
• Output Function:Light/Dark Operate
• Output Circuit:Push-Pull
• Output Current:<100 mA
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Connection Type:2 m Cable
• Housing Material:Plastic (SAN LURAN 378P)
• Dimension:63 x 23.4 x 45 mm
• IP Rating:IP 67
• Operating Temperature:0 to +50 °C
• [$]Standards Met:CE Certified
  cULus Listed
