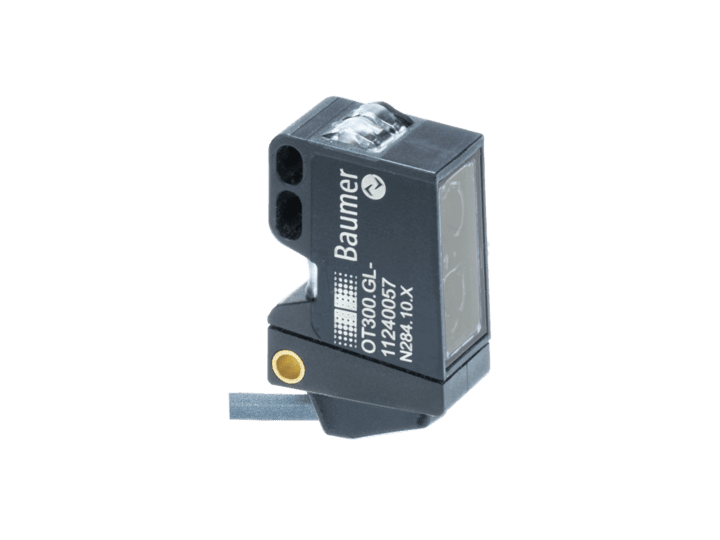

OT300.GL-PLPVT.72CU Diffuse Sensor

Product Attributes

• Shape:Rectangular
• Sensing Distance:100 to 1800 mm
• Light Source:Pulsed Red Laser Diode
• Sensing Range:70 to 1890 mm
• Wave Length:680 nm
• Alignment Optical Axis:<2 °
• Sensing Distance Adjustment Type:qTeach
• Response Time/Release Time:<8 ms
• Supply Voltage:12 to 30 V dc
• Output Current:<50 mA
• Output Function:Light Operate
  Complementary
• Output Circuit:PNP
• Output Indicator:Yellow LED
• Power On Indication:Green LED
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Front Optics:PMMA
• Connection Type:2 m 4-Pin Cable
• [$]Dimension:32.3 x 12.9 x 23 mm
• [$]Housing Material:Plastic (ASA, PMMA)
• [$]IP Rating:IP 67
• [$]Operating Temperature:-20 to +50 °C
