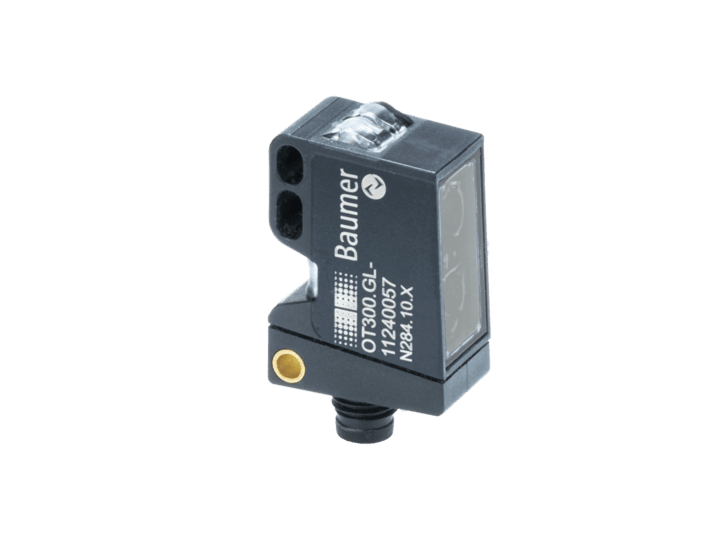

OT300.SL-NDNVT.72N Light Barrier

Product Attributes

• Shape:Rectangular
• Scanning Range:85 to 80 %
• Light Source:Pulsed Red Laser Diode
• Alignment Optical Axis:<2 °
• Output Indicator:Yellow LED
• Sensing Distance Adjustment Type:qTeach
• Wave Length:680 nm
• Response Time/Release Time:<8 ms
• Supply Voltage:12 to 30 V dc
• Output Function:Dark Operate
  Complementary
• Output Circuit:NPN
• Output Current:<50 mA
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Connection Type:M8 4-Pin Connector
• Housing Material:Plastic (ASA, PMMA)
• Beam Type:Point
• Dimension:32.3 x 12.9 x 23 mm
• IP Rating:IP 67
• Operating Temperature:-20 to +50 °C
• [$]Standards Met:CE Certified
  cULus Listed
