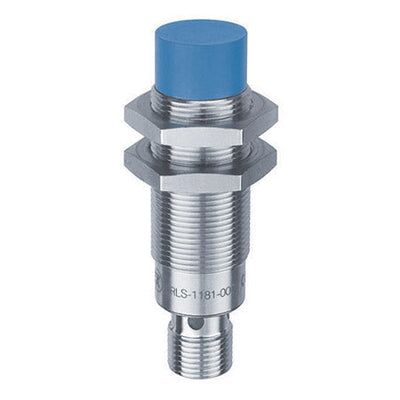

RFID READ+WRITE HEAD

Product Attributes

• Current Rating:35 mA @ 24 V
• No-Load Supply Current:18 mA @ 24 V
• Polling Current:35 mA @ 24 V
• Carrier Frequency:31.25 kHz
• Data Transfer Rate:115200
  38400
  19200 Baud
• Operating Temperature Range:-25 to +80 °C
• Output Type:RS485
• Housing Material:Chrome Plated Brass
• IP Rating:IP67
• Short Circuit Protection (Yes/No):Yes
• Voltage Reversal Protection (Yes/No):Yes
• Dimensions:16.4 x 63.5 mm
• Housing Size:M18
• Standard:ISO/IEC 15693
• Mounting Type:Non Embeddable
• Interface Type:ContriNET x RFID
• Product Series:Read/Write Module
• Connection Type:USB A Male
