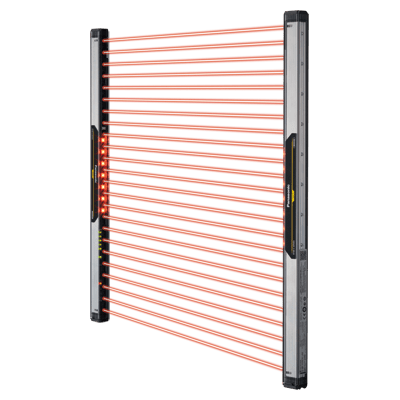

SF4B-H88CA-J05

Product Attributes

• Series:SF4B
• Type:Hand Protection
• Number of Beam Channels:88
• Beam Pitch:20 mm
• Protective Height:1783.4 mm
• Current Rating:100 mA (Emitter Light Off)
  140 mA (Receiver Light Off)
  110 mA (Emitter Lights Up)
  155 mA (Receiver Lights Up)
• Output Type:NPN
  PNP
• Operating Range:0.3 to 7 m
• Supply Voltage:24 V dc
• Response Time:14 ms (OFF)
  80 to 90 ms (ON)
• IP Rating:IP65
  IP67
• Operating Temperature Range:-10 to 55 °C
• Relative Humidity:30 to 85 %
• Terminal Type:Cable
• Mounting Style:Bracket Mount
• Cable Length:50 m
• Connecting Method:Connector
• Material:Aluminium (Enclosure)
  Iron (Upper and Lower Edges)
  Polycarbonate and Polyester Resin (Sensing Surface)
  PBT (Cap)
• Dimensions:1806 x 42 x 43 mm (Rear Mounting)
  1806 x 43 x 55 mm (Side Mounting)
• Standards Met:CE
  TUV
  UL
  OSHA/ANSI
  S-Mark
