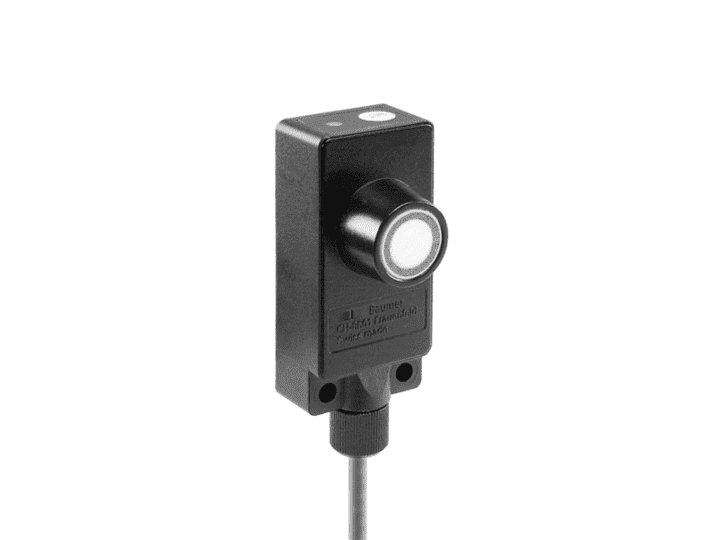

UZDK 30P6103 Ultrasonic Proximity Sensor

Product Attributes

• Shape:Rectangular
• Scanning Range:100 to 1000 mm
• Special Type:2 Point Proximity Switch
• Response Time:<40 ms
• Adjustment Type:Teach-In
• Output Indicator:Green/Yellow LED
• Supply Voltage:12 to 30 V dc
• Output Circuit:PNP Make Function (NO)
• Output Current:<200 mA
• Housing Material:Polyester/Die-Cast Zinc
• Switching Frequency:240 kHz
• Short Circuit Protection (Yes/No):Yes
• Reverse Polarity Protection (Yes/No):Yes
• Current Consumption:40 mA
• Repeat Accuracy:<0.5 mm
• Connection Type:2 m Cable
• Dimension:65 x 30 x 31 mm
• IP Rating:IP 67
• Operating Temperature:-10 to +60 °C
• [$]Standards Met:CE Certified
  cULus Listed
